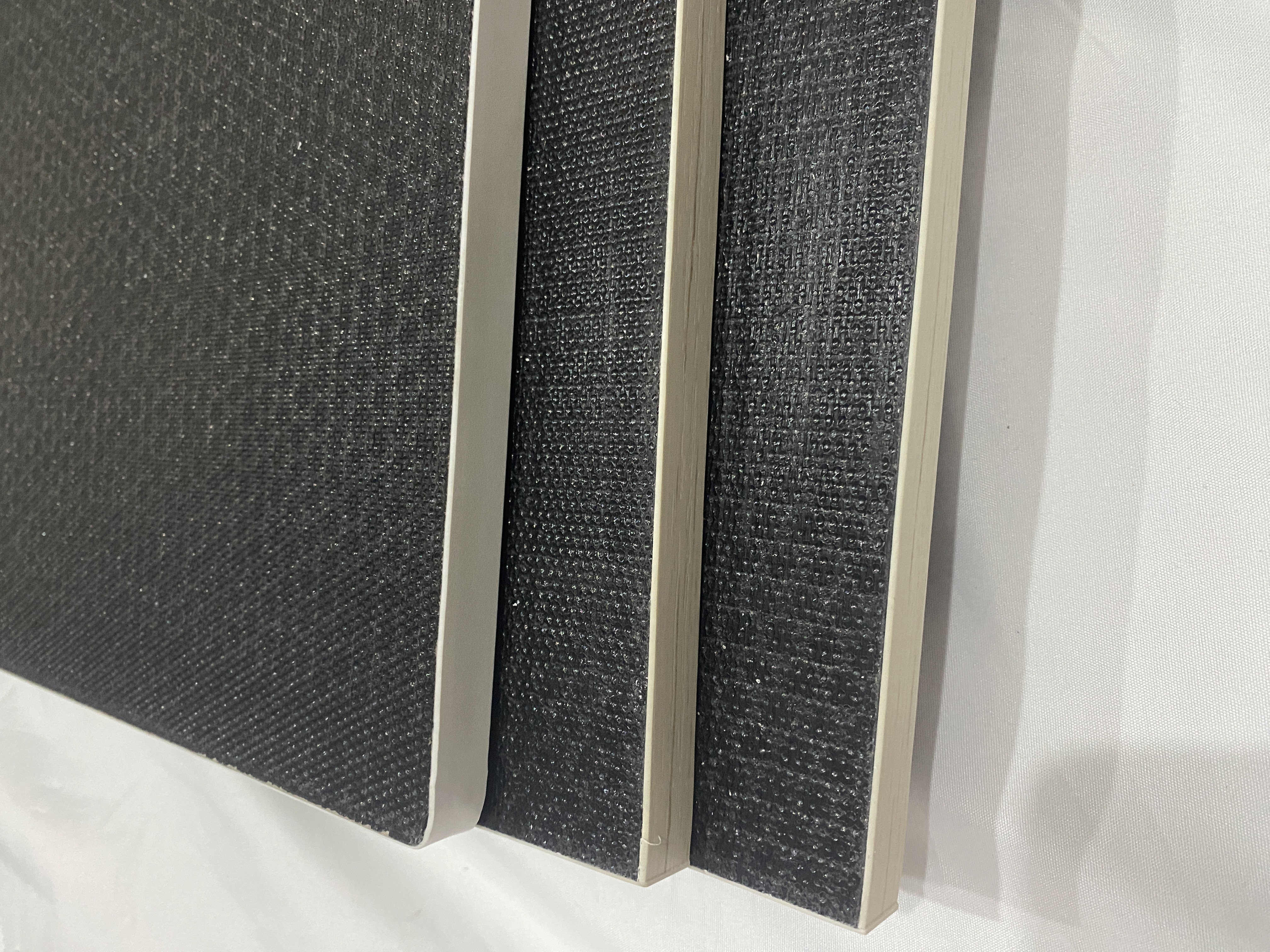

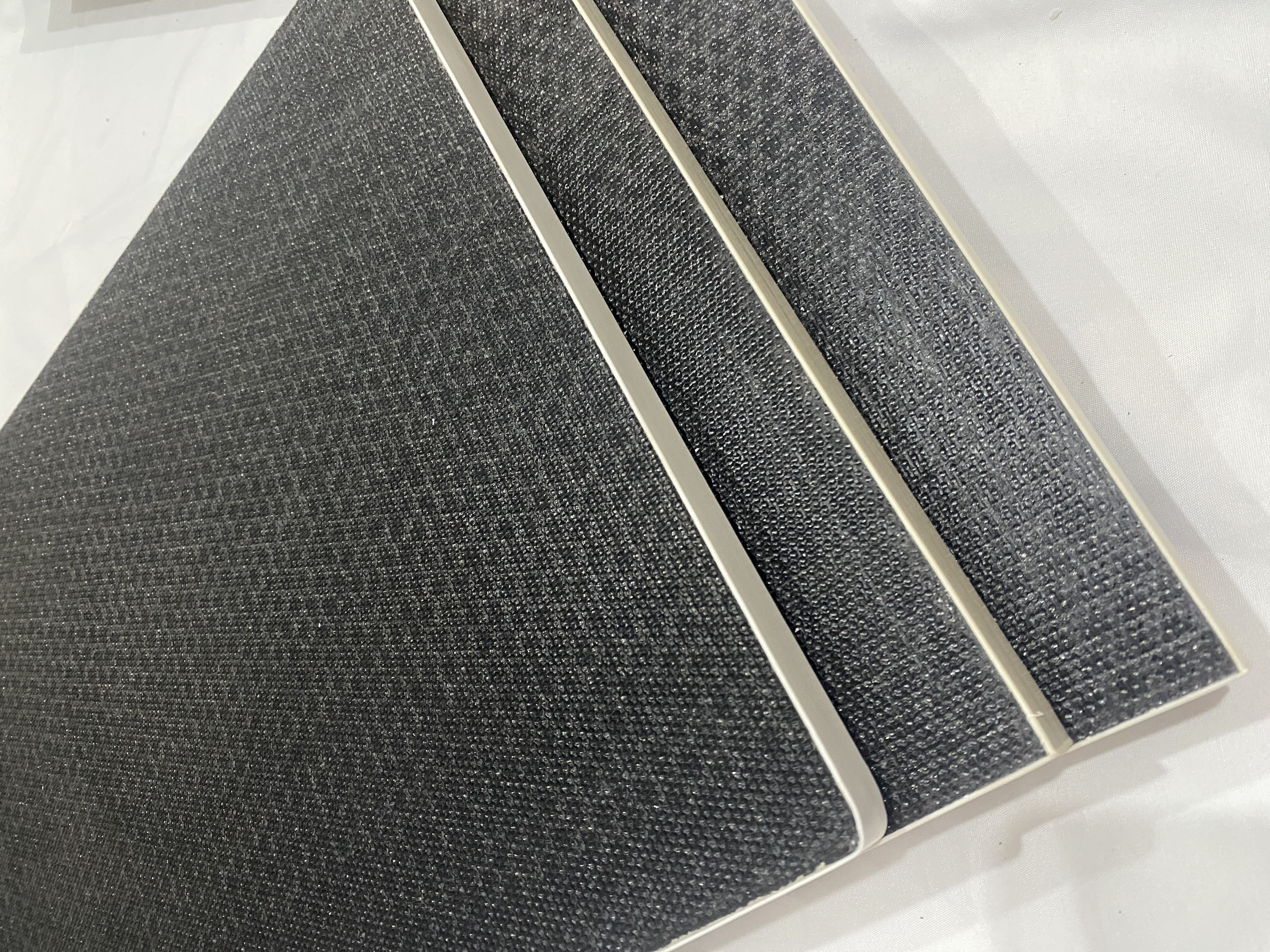

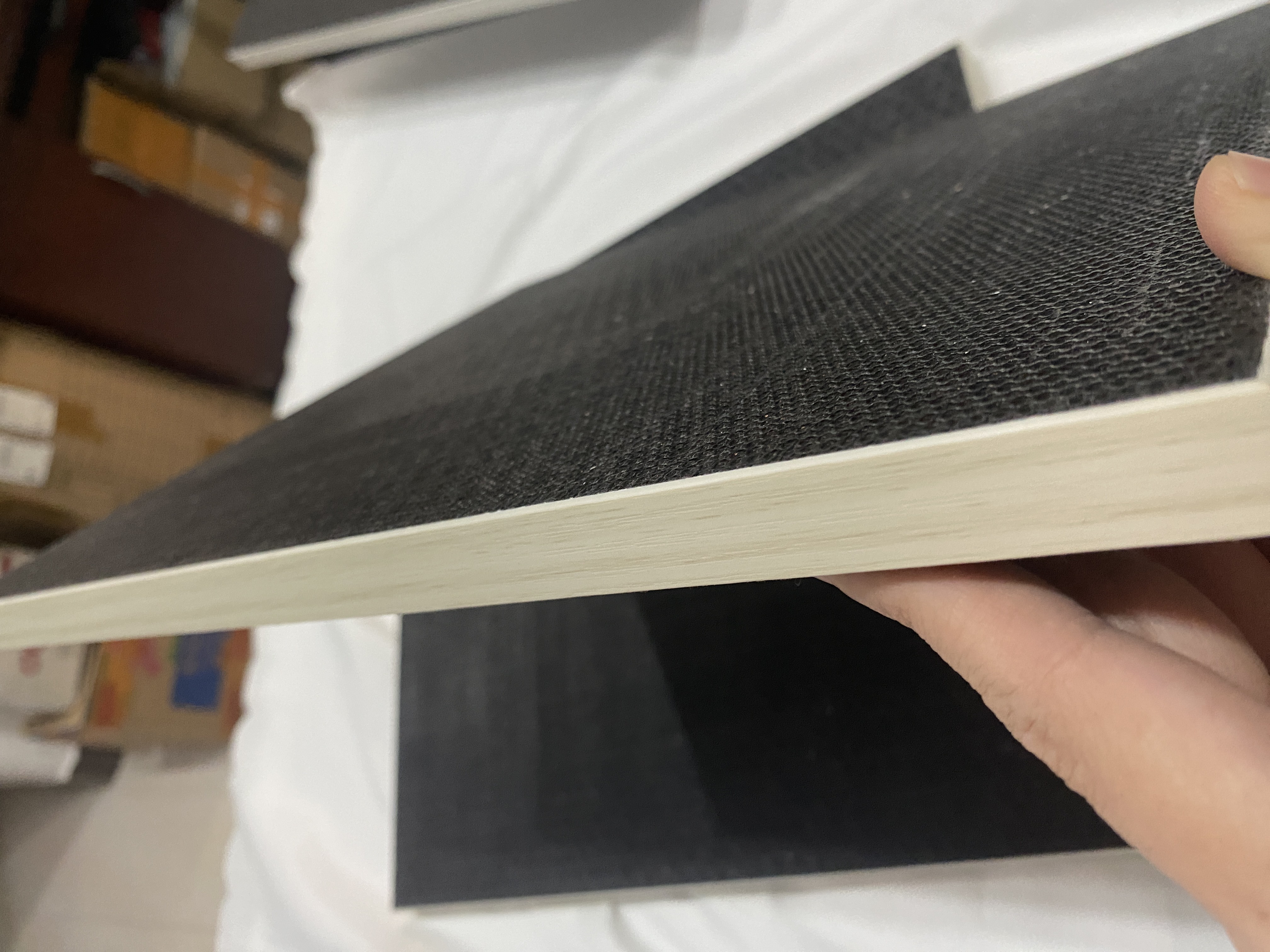

Non-Slip Thermoplastic PP Honeycomb Panel with Edge Banding

Non-slip thermoplastic PP honeycomb panel with edge banding combines a polypropylene honeycomb core with fiberglass reinforced thermoplastic skins and a textured non-slip surface. Edge banding helps protect the exposed panel edges, making the panel suitable for trailer floors, scaffolding platforms and other lightweight flooring applications.

yingtao285@gmail.com +86 15876533932

Product Details

Images

Specification

Material	Polypropylene + Fiberglass
Color	Black
Thickness	Customized 6-50mm
Cell diameter	Customized 6-12mm
Length	1-6m
Width	0-1.6m
Core Density	100kg/㎥(Customized : 70-140kg/㎥)

Facing-CFRT Sheets

CFRT (Continuous Fiber Reinforced Thermoplastic) is used as the reinforced skin of the panel. Continuous fiberglass reinforcement combined with a polypropylene thermoplastic matrix provides a lightweight and stiff surface structure. The CFRT skins are laminated with a PP honeycomb core to form a lightweight sandwich panel for flooring and structural applications.

Core-Polypropylene honeycomb

The polypropylene honeycomb core provides a lightweight structural foundation for the sandwich panel. Its honeycomb geometry helps reduce overall panel weight while maintaining structural stability. Core density, cell size and panel thickness can be customized according to different flooring and platform requirements.

Physical properties of thermoplastic honeycomb panels

Thickness	10mm	12mm	15mm	18mm	20mm
Core Density（kg/㎥）	100	100	100	100	100
Surface Density (kg/m²)	2.88	3.08	3.38	3.68	3.88
Flexural Strength (MPa)	25 - 35	35 - 50	50 - 70	65 - 90	75 - 105
Elastic Modulus (Flexural) (MPa)	1300 - 2200	1800 - 3000	2800 - 4500	3800 - 6000	4500 - 7000
Compressive Strength (Flatwise)(MPa)	2.0 - 3.5	2.0 - 3.5	1.8 - 3.2	1.6 - 2.8	1.5 - 2.6
Thermal Conductivity (W/(m·K))	0.09 - 0.12	0.09 - 0.12	0.09 - 0.12	0.09 - 0.12	0.09 - 0.12

Key Advantages of Non-Slip PP Honeycomb Panel

• Non-Slip Surface
The textured surface provides improved grip for flooring and platform applications.

• Edge Protection
Edge banding helps protect the exposed honeycomb edges and provides a cleaner finished panel structure.

• Lightweight Structure
The PP honeycomb core helps reduce panel weight compared with traditional solid panel structures.

• High Stiffness-to-Weight Ratio
Fiberglass reinforced thermoplastic skins combined with the honeycomb core provide good structural stiffness with relatively low weight.

• Moisture Resistance
The polypropylene-based structure provides good moisture resistance for suitable flooring and transportation applications.

• Customizable Construction
Panel thickness, core density, dimensions and surface configuration can be customized according to application requirements.

Application

Non-slip thermoplastic PP honeycomb panels with edge banding are designed for lightweight flooring and platform applications, including:

• Trailer Floors
• Scaffolding Platforms
• RV Floors
• Truck Body Floors
• Industrial Platforms
