Black Smooth Thermoplastic PP Honeycomb Panel

Black smooth thermoplastic PP honeycomb panel combines a polypropylene honeycomb core with continuous fiberglass reinforced thermoplastic skins. The smooth black surface provides a clean finished appearance while maintaining a lightweight, rigid and moisture-resistant sandwich structure for transportation and industrial applications.

yingtao285@gmail.com +86 15876533932

Product Details

Images

Specification

Material	Polypropylene+fiberglass
Color	Black
Thickness	Customized 6-50mm
Cell diameter	Customized 6-12mm
Length	1-6m
Width	0-1.6m
Core Density	100kg/㎥(Customized : 70-140kg/㎥)

Facing-CFRT Sheets

The panel uses continuous fiberglass reinforced thermoplastic (CFRT) skins combined with a polypropylene honeycomb core. The thermoplastic fiberglass skins provide strength, stiffness and impact resistance while keeping the sandwich panel lightweight. The smooth black surface provides a finished appearance suitable for transportation and industrial composite panel applications.

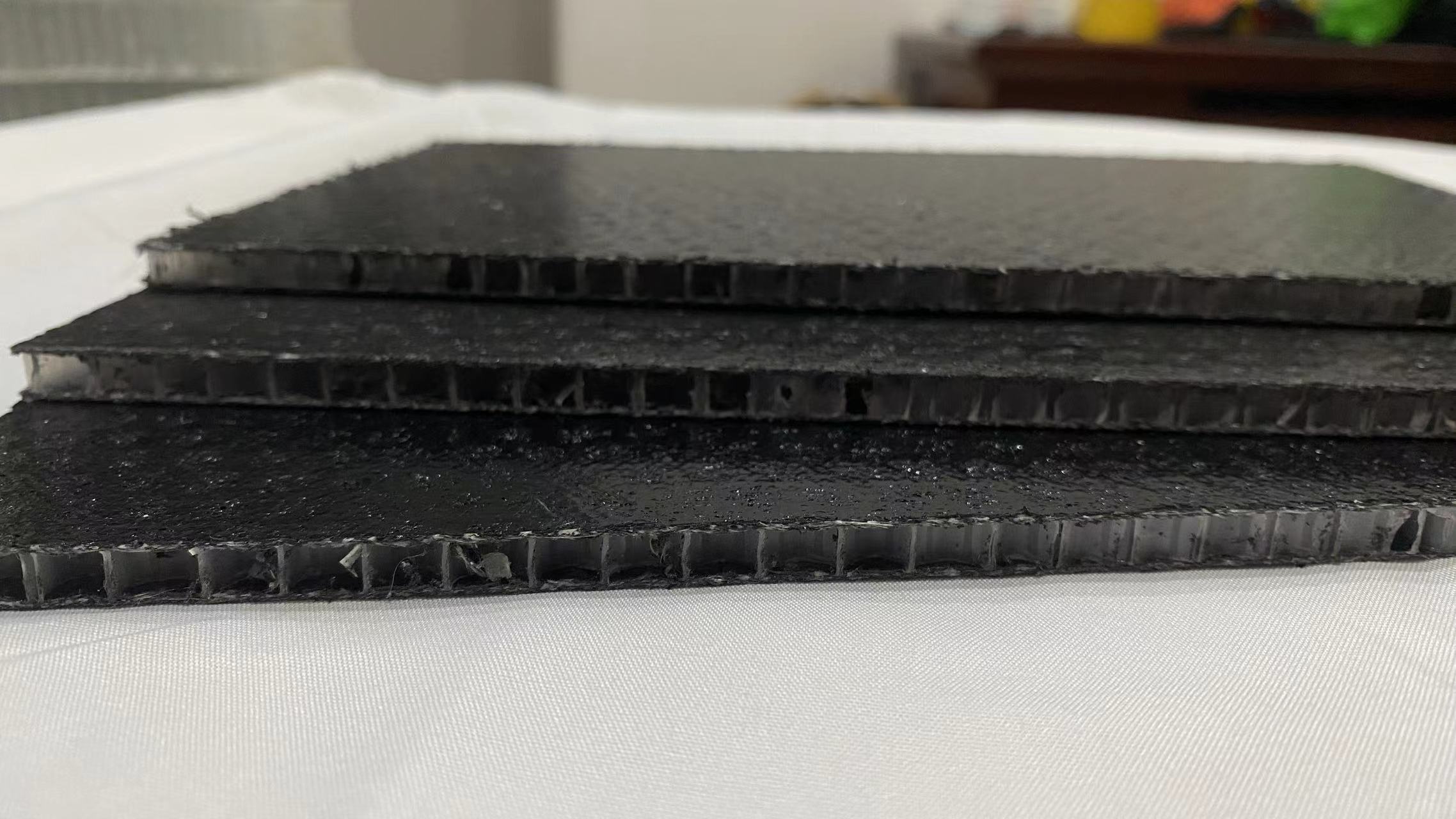

Core-Polypropylene honeycomb

The polypropylene honeycomb core provides a lightweight sandwich structure with good compression resistance, impact absorption and moisture resistance. Combined with fiberglass reinforced thermoplastic skins, it helps achieve a high stiffness-to-weight ratio while reducing overall panel weight.

Physical properties of thermoplastic honeycomb panels

Thickness	10mm	12mm	15mm	18mm	20mm
Core Density（kg/㎥）	100	100	100	100	100
Surface Density (kg/m²)	2.88	3.08	3.38	3.68	3.88
Flexural Strength (MPa)	25 - 35	35 - 50	50 - 70	65 - 90	75 - 105
Elastic Modulus (Flexural) (MPa)	1300 - 2200	1800 - 3000	2800 - 4500	3800 - 6000	4500 - 7000
Compressive Strength (Flatwise)(MPa)	2.0 - 3.5	2.0 - 3.5	1.8 - 3.2	1.6 - 2.8	1.5 - 2.6
Thermal Conductivity (W/(m·K))	0.09 - 0.12	0.09 - 0.12	0.09 - 0.12	0.09 - 0.12	0.09 - 0.12

Core Advantages of Black Smooth Thermoplastic PP Honeycomb Panel

Lightweight Structure
PP honeycomb core helps reduce overall panel weight compared with traditional solid materials.

High Strength & Stiffness
Continuous fiberglass reinforced thermoplastic skins provide good structural strength and stiffness.

Impact Resistant
The thermoplastic sandwich structure provides good toughness and impact resistance for transportation and industrial applications.

Moisture Resistant
Polypropylene honeycomb does not absorb water like traditional wood-based panel cores.

Smooth Black Surface
The black smooth surface provides a clean finished appearance for applications where both performance and appearance are required.

Easy Processing
Panels can be cut and processed according to different component dimensions and installation requirements.

Applications

Black smooth thermoplastic PP honeycomb panels are suitable for lightweight structural and interior components, including:

RV and caravan panels
Trailer body and floor panels
Truck body panels
Marine and boat panels
Industrial composite panels
