Non-Slip Thermoplastic PP Honeycomb Panel

Non-slip PP honeycomb panels combine a polypropylene honeycomb core with fiberglass reinforced thermoplastic skins and a textured anti-slip surface. Available in custom thicknesses and sizes for trailer floors, RV flooring, scaffolding platforms and industrial flooring.

yingtao285@gmail.com +86 15876533932

Product Details

Images

Non-Slip Thermoplastic PP Honeycomb Panel

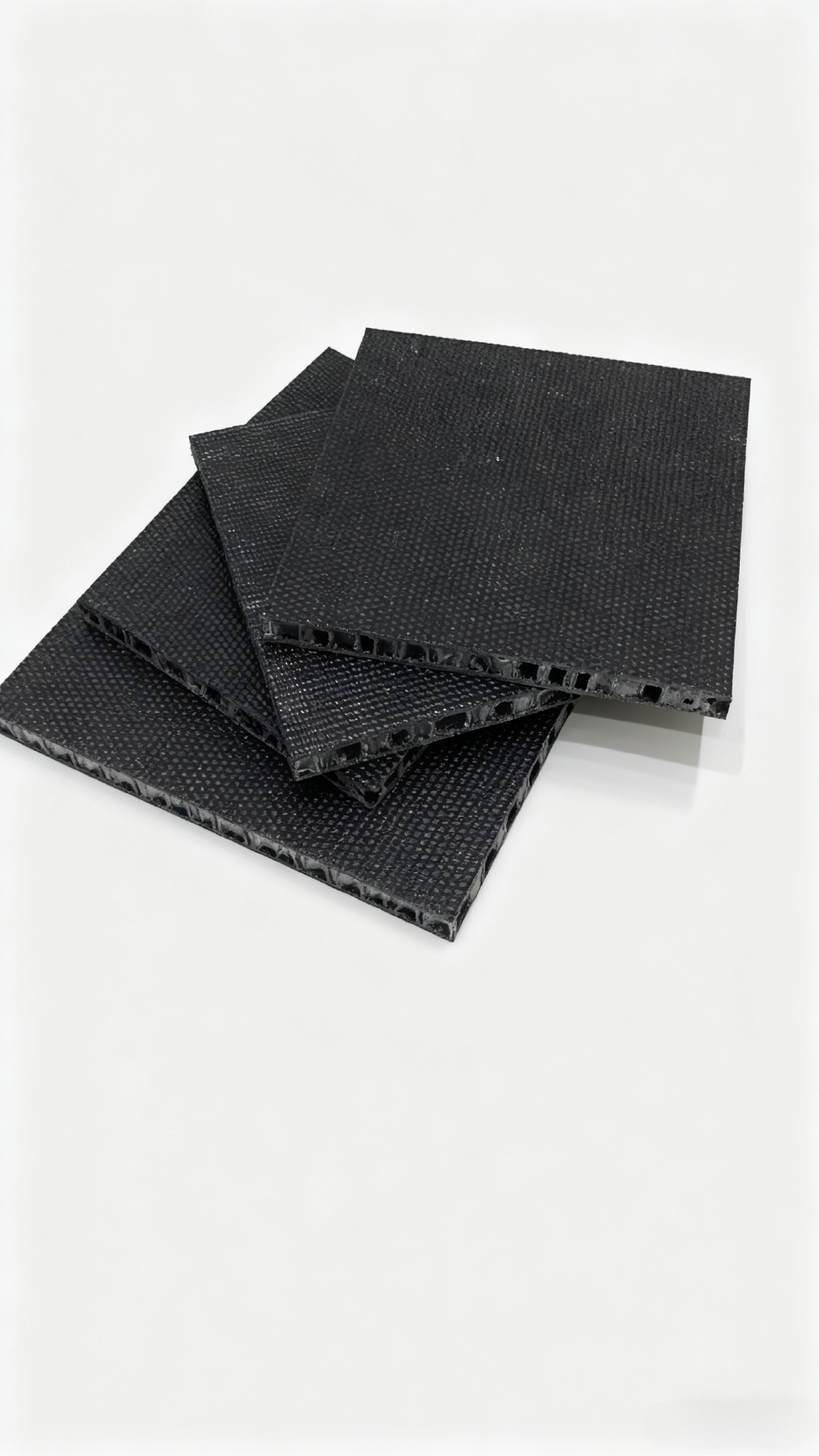

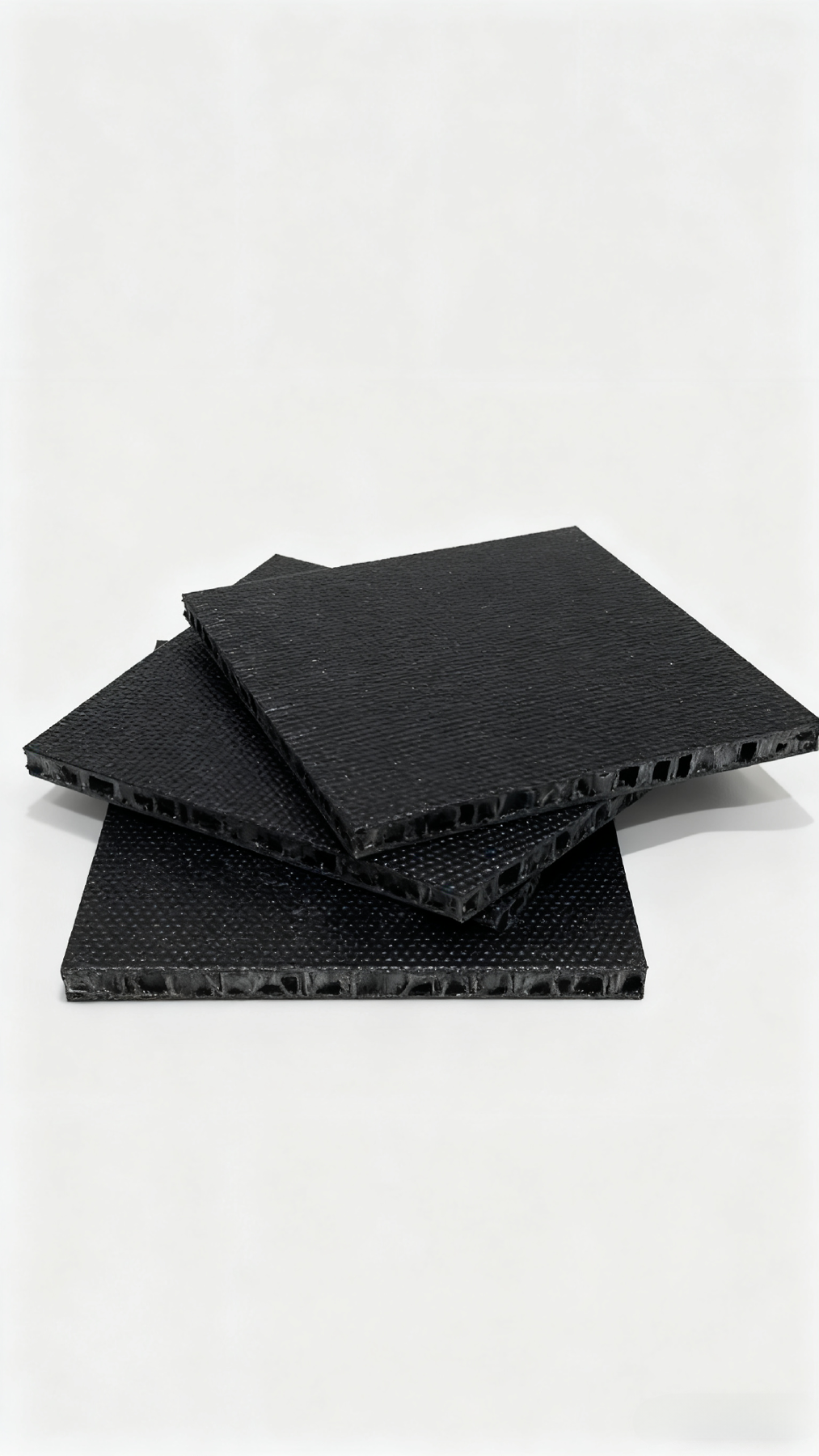

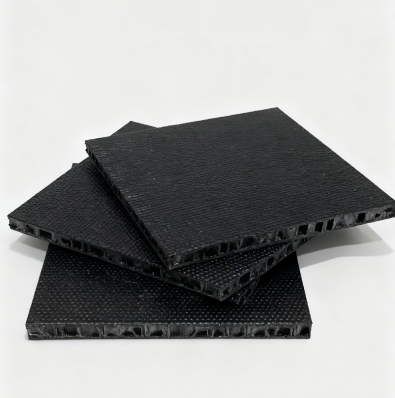

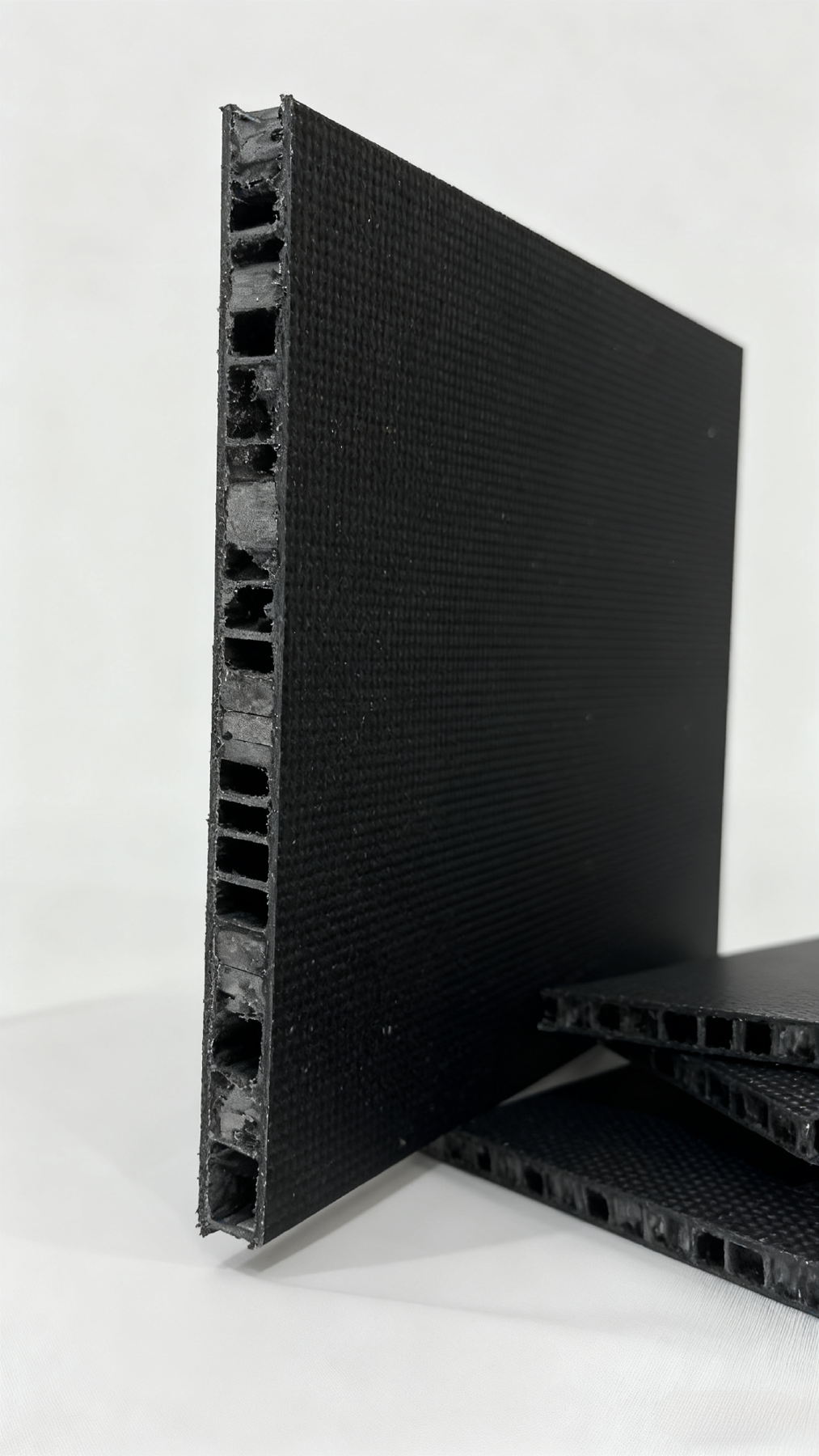

Our non-slip thermoplastic PP honeycomb panel combines a lightweight polypropylene honeycomb core with continuous fiberglass reinforced thermoplastic skins. The textured anti-slip surface is designed for flooring and platform applications where weight reduction, moisture resistance and surface grip are important. It is suitable for trailer floors, RV flooring, truck bodies, scaffolding platforms and other industrial flooring applications.

Specification

Material	Polypropylene+fiberglass
Color	Black
Thickness	Customized 6-50mm
Cell diameter	Customized 6-12mm
Length	1-6m
Width	0-1.6m
Core Density	100kg/㎥(Customized : 70-140kg/㎥)

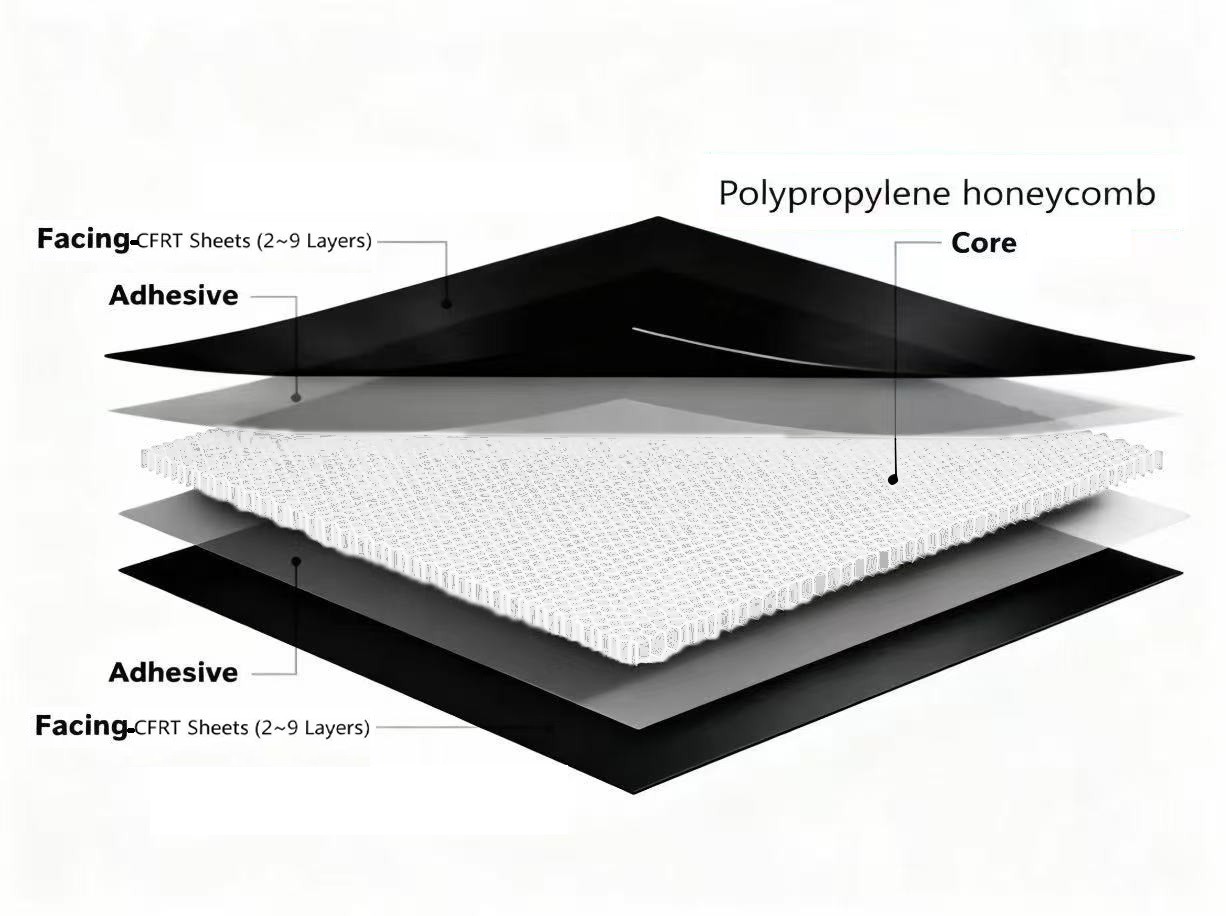

Non-slip thermoplastic PP honeycomb panel structure with fiberglass reinforced skins and polypropylene honeycomb core

Facing-CFRT Sheets

CFRT (Continuous Fiber Reinforced Thermoplastic) is a high-performance composite material. It is composed of continuous unidirectional fibers (such as glass or carbon fiber) and a thermoplastic matrix (e.g., PP, PA, PPS) combined via a specialized impregnation process. It retains the high strength and modulus of the reinforcing fibers while incorporating the high toughness and recyclability of the thermoplastic polymer. Thanks to its continuous fiber structure and thorough resin impregnation, CFRT exhibits far superior mechanical properties to discontinuous fiber composites like GMT and LFT. It is typically supplied as a prepreg tape and can be processed using rapid hot-pressing techniques, finding broad applications in automotive, transportation, and sports equipment industries.

Core-Polypropylene honeycomb

The PP honeycomb core is fundamental to the sandwich structure, leveraging a combination of the polypropylene material's properties and the honeycomb geometry. This results in a lightweight, high-strength core with outstanding impact resistance, energy absorption, sound and thermal insulation, chemical resistance, moisture protection, and vibration damping capabilities.

Physical properties of thermoplastic honeycomb panels

Thickness	10mm	12mm	15mm	18mm	20mm
Core Density（kg/㎥）	100	100	100	100	100
Surface Density (kg/m²)	2.88	3.08	3.38	3.68	3.88
Flexural Strength (MPa)	25 - 35	35 - 50	50 - 70	65 - 90	75 - 105
Elastic Modulus (Flexural) (MPa)	1300 - 2200	1800 - 3000	2800 - 4500	3800 - 6000	4500 - 7000
Compressive Strength (Flatwise)(MPa)	2.0 - 3.5	2.0 - 3.5	1.8 - 3.2	1.6 - 2.8	1.5 - 2.6
Thermal Conductivity (W/(m·K))	0.09 - 0.12	0.09 - 0.12	0.09 - 0.12	0.09 - 0.12	0.09 - 0.12

Advantages of Non-Slip Thermoplastic PP Honeycomb Panel

Non-Slip Surface
Textured surface provides improved grip for flooring, platforms and transportation applications.

Lightweight Sandwich Structure
PP honeycomb core reduces panel weight while the fiberglass reinforced skins provide structural support.

Moisture Resistant
The polypropylene honeycomb core does not absorb water, making the panel suitable for humid and outdoor environments.

Impact Resistant
Thermoplastic fiberglass skins provide good toughness and impact resistance for demanding flooring applications.

Easy to Process
Panels can be cut and processed according to different floor and platform dimensions.

Customizable
Thickness, dimensions, core density and surface structure can be customized according to project requirements.

Application

Applications

The non-slip PP honeycomb panel is designed for applications requiring a lightweight, durable and slip-resistant flooring or platform surface.

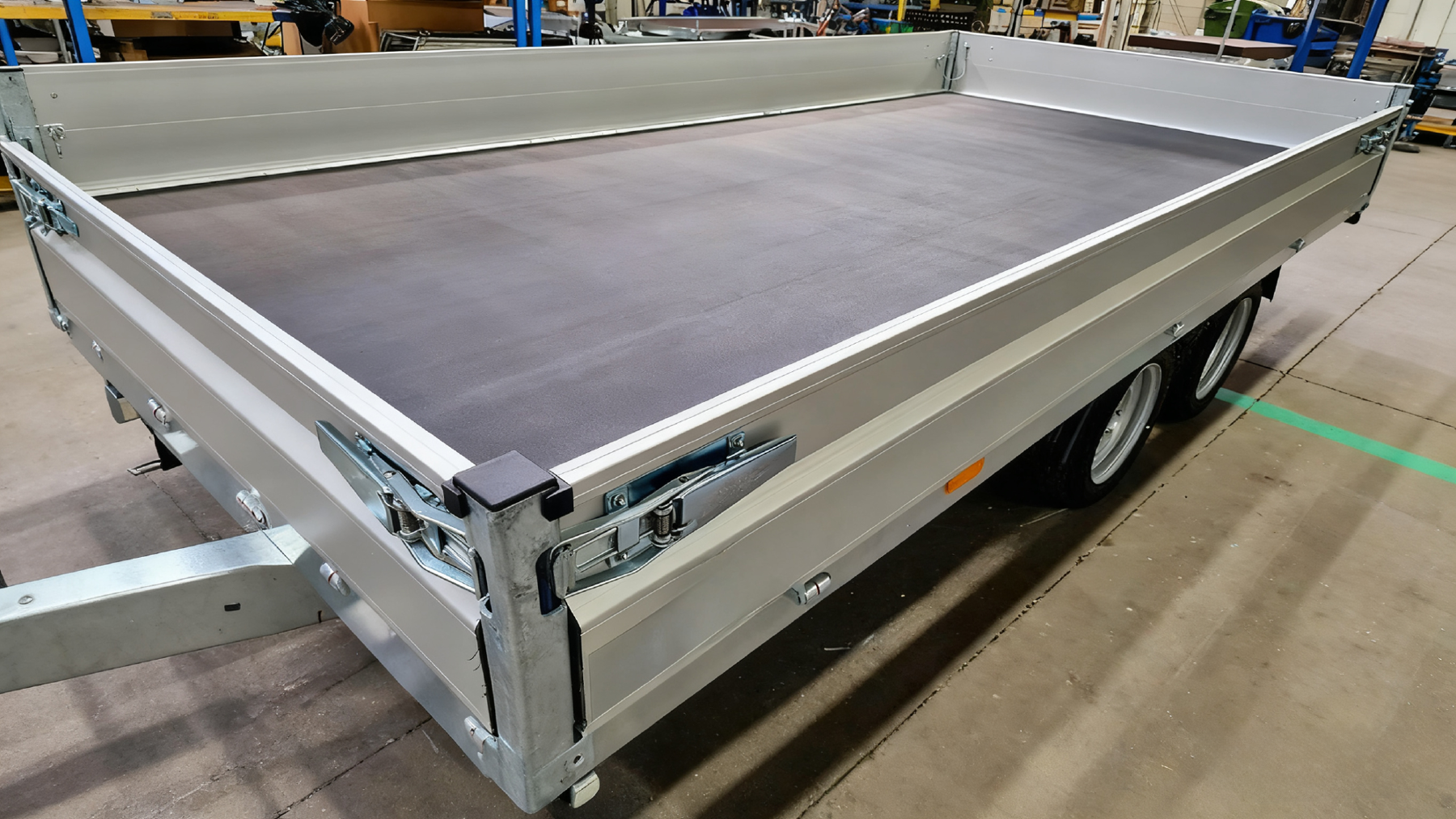

• Trailer floors
• RV and caravan flooring
• Truck body floors

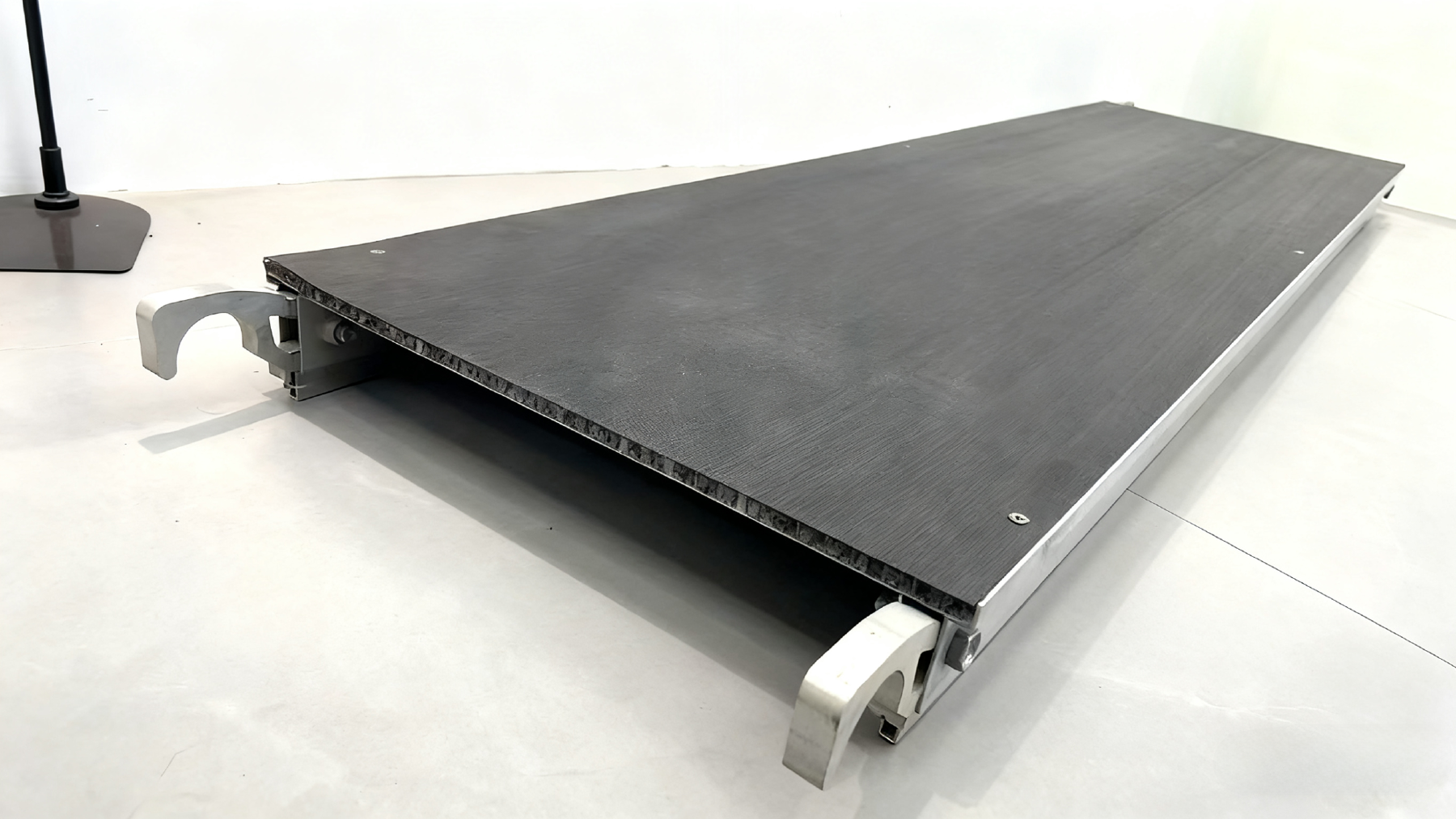

• Scaffolding platforms

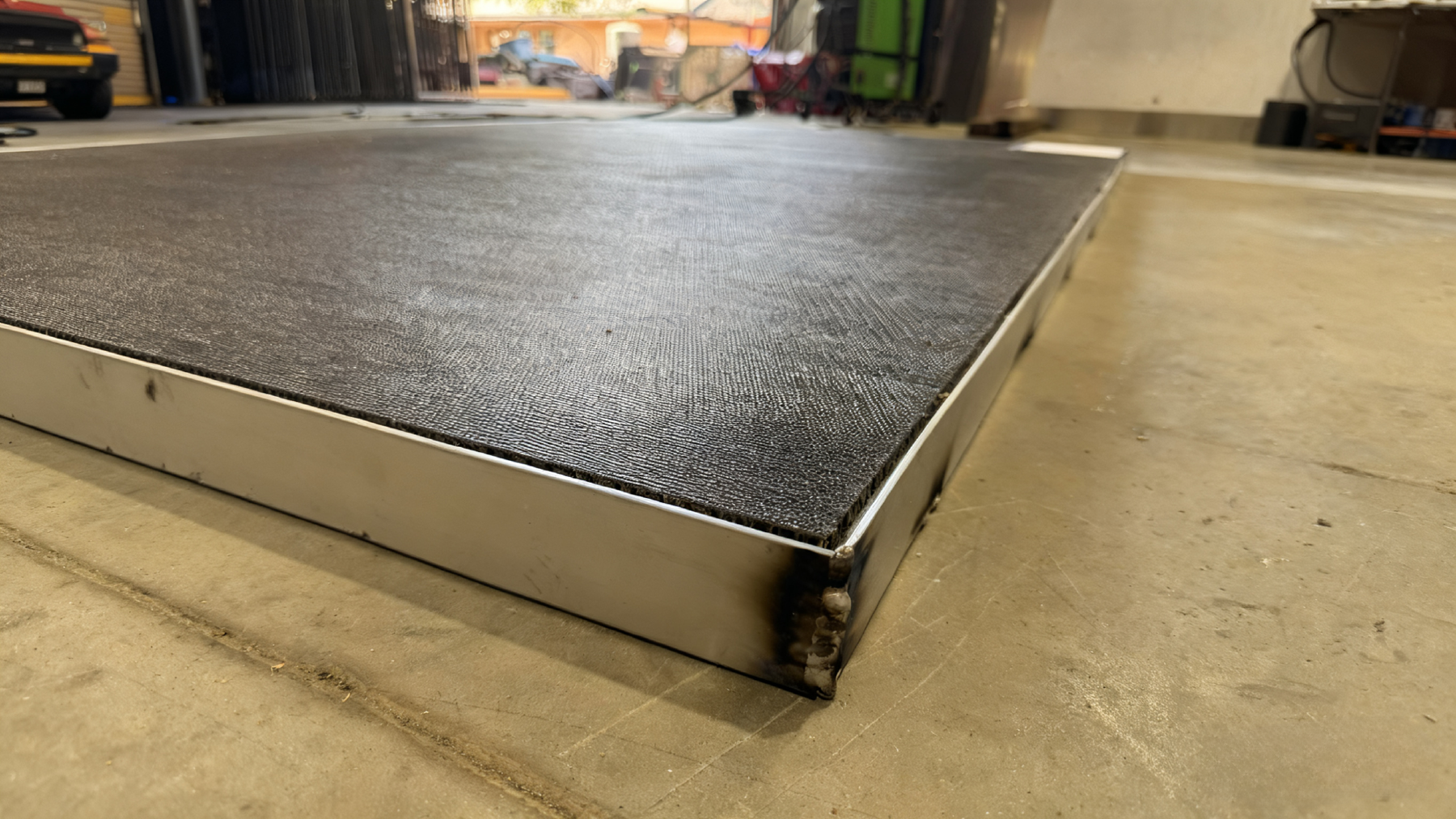

• Work platforms and industrial flooring
• Marine flooring and deck applications
